製品詳細
Place of Origin: China Hefei
ブランド名: DST
証明: CE Rosh
Model Number: MCA-950U
支払いと送料の条件
Minimum Order Quantity: 1set
価格: Based on Specification
Packaging Details: wooden case
Delivery Time: around 5 months
Payment Terms: T/T
Supply Ability: Five sets in 6 months
Substrate: |
CPP,PET,BOPP |
Substrate Width: |
max.1300mm |
Substrate Thickness: |
0.1μm-1.6μm |
Coating material: |
Al.only;Zn.,Al.etc |
Heating method: |
Evaporation |
Power supply: |
A C380V 50Hz + PE |
Coating speed: |
max. 21 m/s |
Core diameter (inside): |
75 mm or 13 mm |
Core material: |
metal, plastic, impregnated paper etc |
Core Components: |
PLC, Engine, Motor,etc |
Color: |
customized |
Coating Film: |
BOPP/PET/CPP etc |
Type: |
Coating Production Line |
Substrate: |
CPP,PET,BOPP |
Substrate Width: |
max.1300mm |
Substrate Thickness: |
0.1μm-1.6μm |
Coating material: |
Al.only;Zn.,Al.etc |
Heating method: |
Evaporation |
Power supply: |
A C380V 50Hz + PE |
Coating speed: |
max. 21 m/s |
Core diameter (inside): |
75 mm or 13 mm |
Core material: |
metal, plastic, impregnated paper etc |
Core Components: |
PLC, Engine, Motor,etc |
Color: |
customized |
Coating Film: |
BOPP/PET/CPP etc |
Type: |
Coating Production Line |
| Attribute | Value |
|---|---|
| Substrate | CPP, PET, BOPP |
| Substrate Width | max. 1300mm |
| Substrate Thickness | 0.1μm-1.6μm |
| Coating material | Al. only; Zn., Al. etc |
| Heating method | Evaporation |
| Power supply | AC380V 50Hz + PE |
| Coating speed | max. 21 m/s |
| Core diameter (inside) | 75 mm or 13 mm |
| Core material | metal, plastic, impregnated paper etc |
| Core Components | PLC, Engine, Motor, etc |
| Color | customized |
| Coating Film | BOPP/PET/CPP etc |
| Type | Coating Production Line |

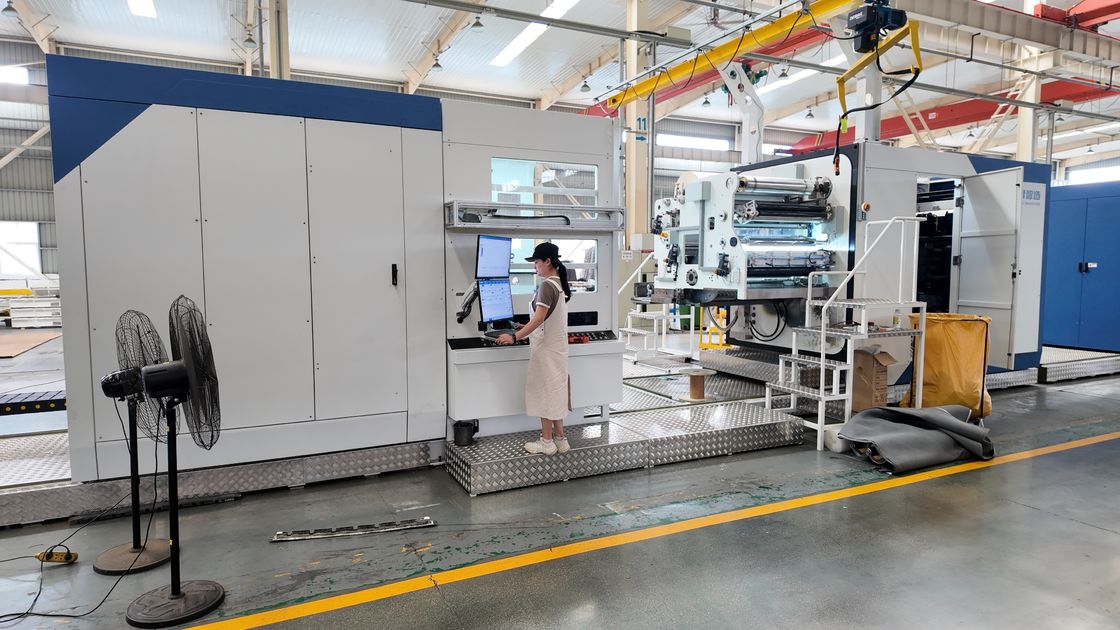

MCA-650 CNC High Vacuum Metallizing Machine adopts internationally advanced technology design, enabling continuous one-sided aluminum and aluminum/zinc metallization on plastic films such as PET and OPP, to form the desired metallized film products.
High Uniformity: The powerful, robust evaporation source with a staggered ceramic boat arrangement provides excellent coating uniformity, coating thickness uniformity below ±5% is our guarantee.
High Quality: Substrates, in particular low tension or heat sensitive films such as CPP and PE, benefit from our Free Span Metallizer. Because our design avoids large thermal gradient between the cooled process drum and the hot film surface, and reduces the radiant heat, most intractable problems like light line, wrinkle, spatter and micro-cracking are solved.
Short Waiting Time: Inverter Frequency Control and the short pump tube in the Vacuum System minimizes the time spent in pumping; There is no edge shields to adjust and clean, as well as no drum to clean, these advantages increase the productive time dramatically.
