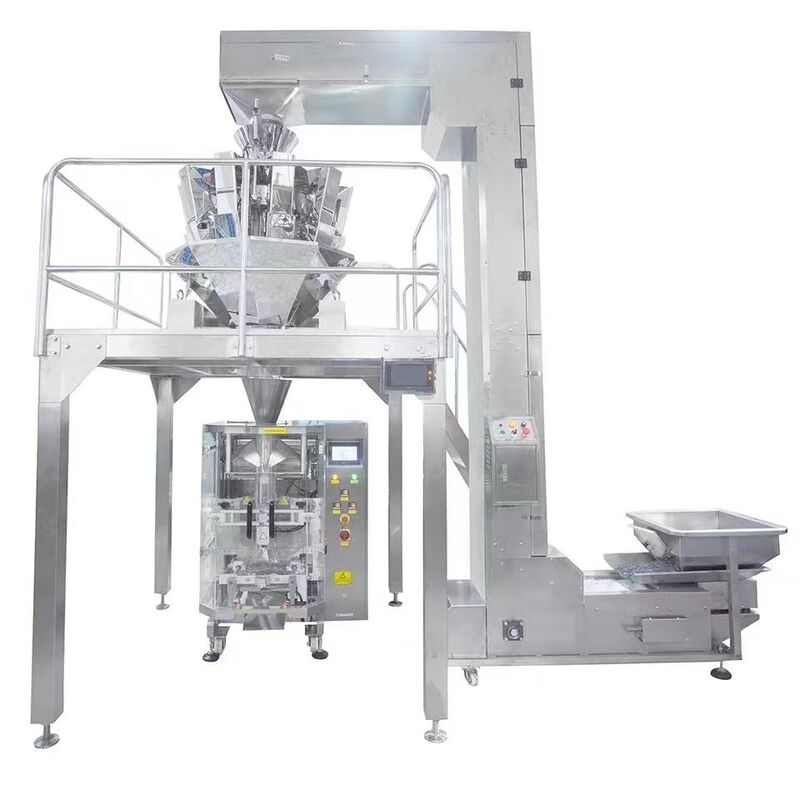

DCS-1000 For Quantitative Packaging Fully automatic bag packaging machine

1. Product description (DCS-1000 ton bag quantitative packaging scale):
The weighing and packaging of materials can be combined with the batching system, conveying system, mixing system, and corresponding control systems to form an automatic system
Chemical weighing assembly line.
1. Application scope:
Suitable for quantitative packaging of powdered materials in raw material workshops in industries such as food, chemical, rubber building materials, refractory materials, cement, and mining.
3. Equipment advantages:
① Adopting advanced microcomputer control instruments, with high degree of automation, strong reliability, simple operation, and automatic correction of drop
Patented technology of the company, automatic alarm for out of tolerance, and other functions.
② High measurement accuracy, fast and slow dual speed feeding, fast packaging and accurate measurement.
③ Automatic bagging, the operator covers the empty bag, the packaging machine automatically feeds, and after the quantitative unloading is completed, the bag automatically falls.
④ Reserve a printer interface to print production data such as the number of packaging bags and total weight.
⑥ The packaging machine is fully sealed and equipped with a dustproof interface, with good dust removal effect.
⑦ The control cabinet adopts a sealed form and is suitable for harsh dust environments.

1. Bagging (manual)
The operator presses the "bagging" button, and the lifting frame automatically lowers to the bagging position. The operator hangs the sling of the packaging bag onto the packaging
On the four hooks of the machine, clamp the feeding port of the packaging bag to make it completely sealed, and the lifting frame will automatically rise to fit this port
Bag packaging location.
2. Peeling (automatic)
The packaging machine automatically peels the weight of the packaging bag.
3. Quick feeding (automatic)
The packaging machine automatically controls the opening of the feeding mechanism (feeding mechanisms include gravity feeding, belt feeding, and spiral feeding), and starts rapid feeding
During the feeding process, the weighing instrument continuously detects the weight of the materials in the packaging bag. When the weight of the materials in the packaging bag reaches the manual setting
When the fast feeding value is reached, the fast feeding ends. During the fast feeding process, the lifting frame automatically lifts up and down to make the ton bag packaging material more solid.
4. Slow feeding (automatic)
After the fast feeding is completed, the packaging machine automatically switches to slow feeding,
When the weight of the slowly added material is equal to the quantitative value, add
Material process summary
Bundle, the packaging machine automatically stops the feeder and closes the cutting material
Doors.
5. Bag unloading (automatic)
After the feeding process is completed, the four bag hanging cylinders act to cause hanging
The bag hook automatically releases the sling, and the bag clamping device automatically opens,
Unpacking
The feeding port of the bag, waiting for the filled packaging bag to fall into manual labor
Cart
